Tegner

Tegner was the pre- and post-processing system for PDC's previous flagship system, Beskow.

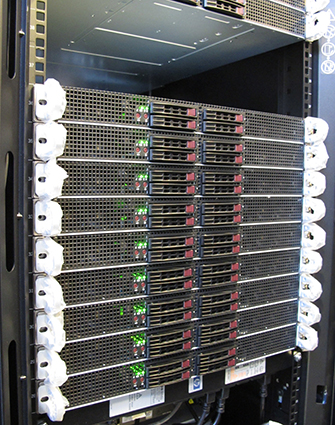

Tegner, PDC's pre- and post-processing system

Although Tegner is primarily used as the pre- and post-processing system for Beskow, it is also available as a general cluster for researchers from the Stockholm region or for other users interested in using GPUs.

Tegner is a heterogeneous system which has 67 Supermicro nodes with Intel CPUs - 9 of those nodes have NVIDIA Tesla GPUs. Tegner's memory is quite large with each node having 0.5 TB, 1 TB or 2 TB. In total Tegner has 42.5 TB of main memory. The system is equipped with an EDR Infiniband interconnect.

System

5 fat nodes with 2 TB RAM

  • 4 x 12 cores Intel E7-8857v2 Ivy Bridge
  • 2 TB RAM - 48 cores
  • 2 x NVIDIA Quadro K420

5 fat nodes with 1 TB RAM

  • 4 x 12 cores Intel E7-8857v2 Ivy Bridge
  • 1 TB RAM - 48 cores
  • 2 x NVIDIA Quadro K420

46 thin nodes

  • 2 x 12 cores Intel E5-2690v3 Haswell
  • 512 GB RAM - 24 cores
  • 1 x NVIDIA Quadro K420

9 thin nodes with GPU

  • 2 x 12 cores Intel E5-2690v3 Haswell
  • 512 GB RAM - 24 cores
  • 1 x NVIDIA Tesla K80

2 file transfer nodes

Performance

  • Peak performance 66 TFLOPS CPU, 48 TFLOPS GPU
  • 42.5 TB RAM
  • Full bisectional Infiniband EDR (12 GB/s, less than 1.4 µs MPI-latency)
  • 5 PB Lustre file system

Usage

  • primarily used as a pre- and post-processing system for Beskow (Note: A small time allocation on Tegner is automatically included in all Beskow time allocations.)
  • also available to academic researchers in the Stockholm region for general computational processing
  • also used in some industrial research projects
  • operation currently funded till Q4 2020
