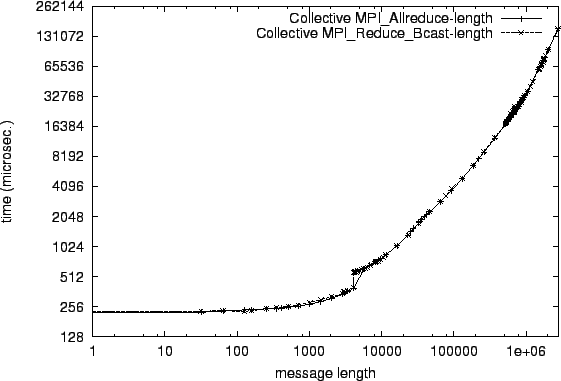

Comp. MPI_Allreduce-length and MPI_Reduce_Bcast-length

msg. len.	latency	bandwidth	msg. len	latency	bandwidth
[units]	[$\mu$s]	[units/s]	[1024 units]	[$\mu$s]	[1024 units/s]
Min. msg. length			Max. msg. length
Collective MPI_Allreduce-length
0	216.6	0	2730.66	159278	4.11456e+06
Collective MPI_Reduce_Bcast-length
0	217.7	0	2730.66	155616	263212

• Information for suite `Collective MPI_Allreduce-length'
  • Pattern: Collective varied over message length.
  • default values: 16 nodes, max. / act. time for suite disabled/0.58 min.
  • Max. allowed standard error is 3.00 %.

  	message length
  X axis scale	logarithmic
  Param. refinement	automatic x wide adaption
  Argument range	1 - 2796192 units (s. below)
  Argument stepwidth	1.414214

  • Units: bytes in type: basetype 1 (MPI_INT), send-datatype 20: size 4 Bytes, extent 4 Bytes (user defined basetype 1 (MPI_INT)), receive-datatype 20: size 4 Bytes, extent 4 Bytes (user defined basetype 1 (MPI_INT))

• Information for suite `Collective MPI_Reduce_Bcast-length'
  • Pattern: Collective varied over message length.
  • default values: 16 nodes, max. / act. time for suite disabled/0.66 min.
  • Max. allowed standard error is 3.00 %.

  	message length
  X axis scale	logarithmic
  Param. refinement	automatic x wide adaption
  Argument range	1 - 2796192 units (s. below)
  Argument stepwidth	1.414214

  • Units: bytes in type: basetype 1 (MPI_INT), send-datatype 20: size 4 Bytes, extent 4 Bytes (user defined basetype 1 (MPI_INT)), receive-datatype 20: size 4 Bytes, extent 4 Bytes (user defined basetype 1 (MPI_INT))
